PRODUCTS

LAZY RIVERS

Exclusive systems for water movement of Lazy Rivers

This changes everything

01 Energy savings compared to conventional systems with a safe configuration, using 60% less energy with the “TIGRIS” and 40% with the “NILO” system. And with a totally secure configuration, as opposed to others.

02 Our systems use high-flow turbines, which motors and electrical parts are not in contact with the water.

03 The “TIGRIS” and “NILO” Lazy River water movement system have been designed for a continuous or timed operation.

04 The design of the turbines is compact, which allows that the dimensions of the booster stations that are built on site, be as small as possible.

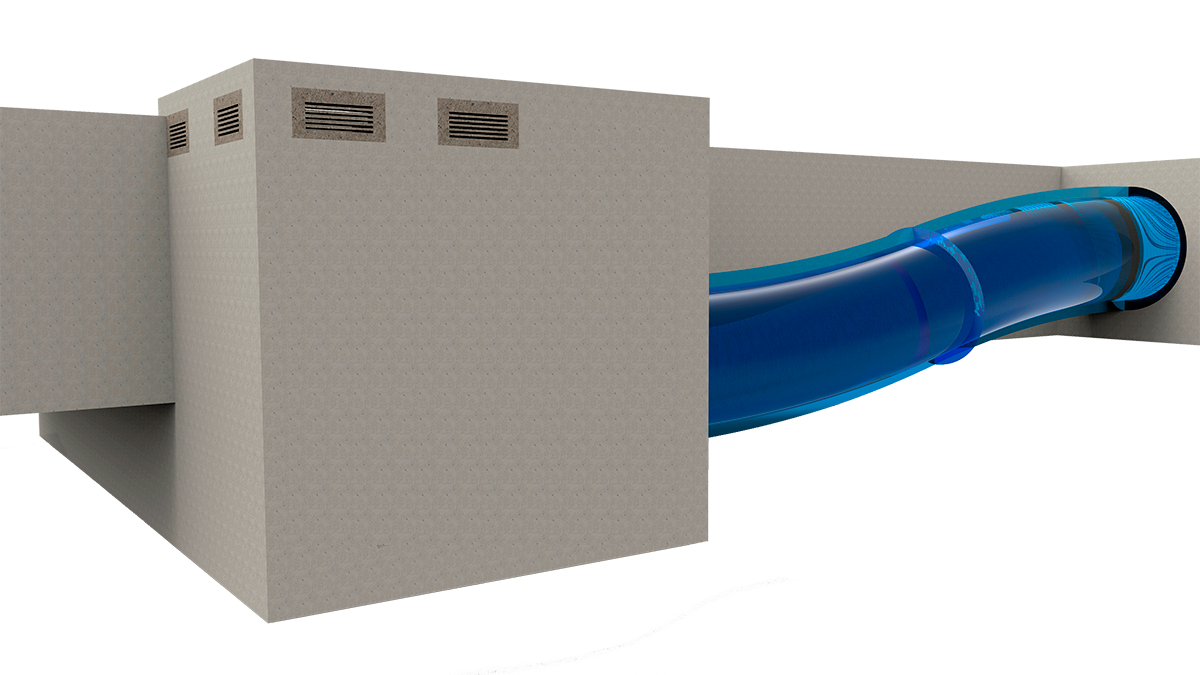

TIGRIS System

There are three configurations of equipment for pumping stations TIGRIS

TIGRIS 15

Motor 15 kW
Flow: 4.500 m3/h

TIGRIS 11

Motor 11 kW
Flow: 4.000 m3/h

TIGRIS 7,5

Motor 7,5 kW
Flow: 3.500 m3/h

The exact location of these stations and the power of the turbines are determined according to the width and geometry of the river.

Our engineers will help you configure the optimal system for your project.

CONTACT US FOR MORE INFORMATION

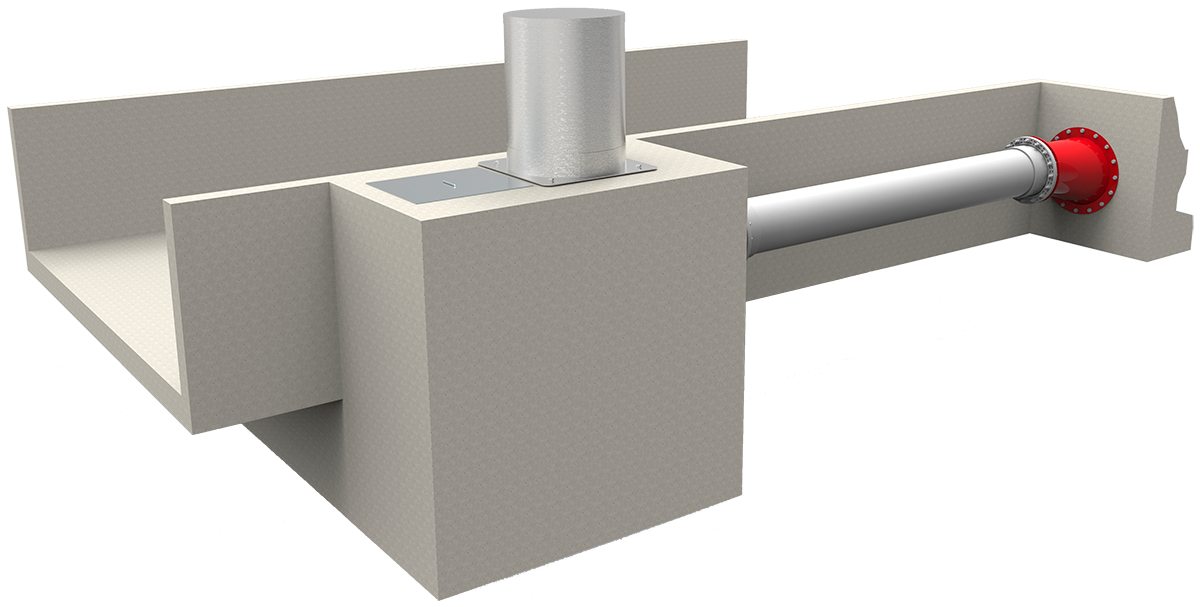

NILO System

Vertical pump assembly

NILO 18

Motor 18 kW
Flow: 2.000 – 2.200 m3/h

The exact location of these stations and the power of the turbines are determined according to the width and geometry of the river.

Our engineers will help you configure the optimal system for your project.

CONTACt us for more information
